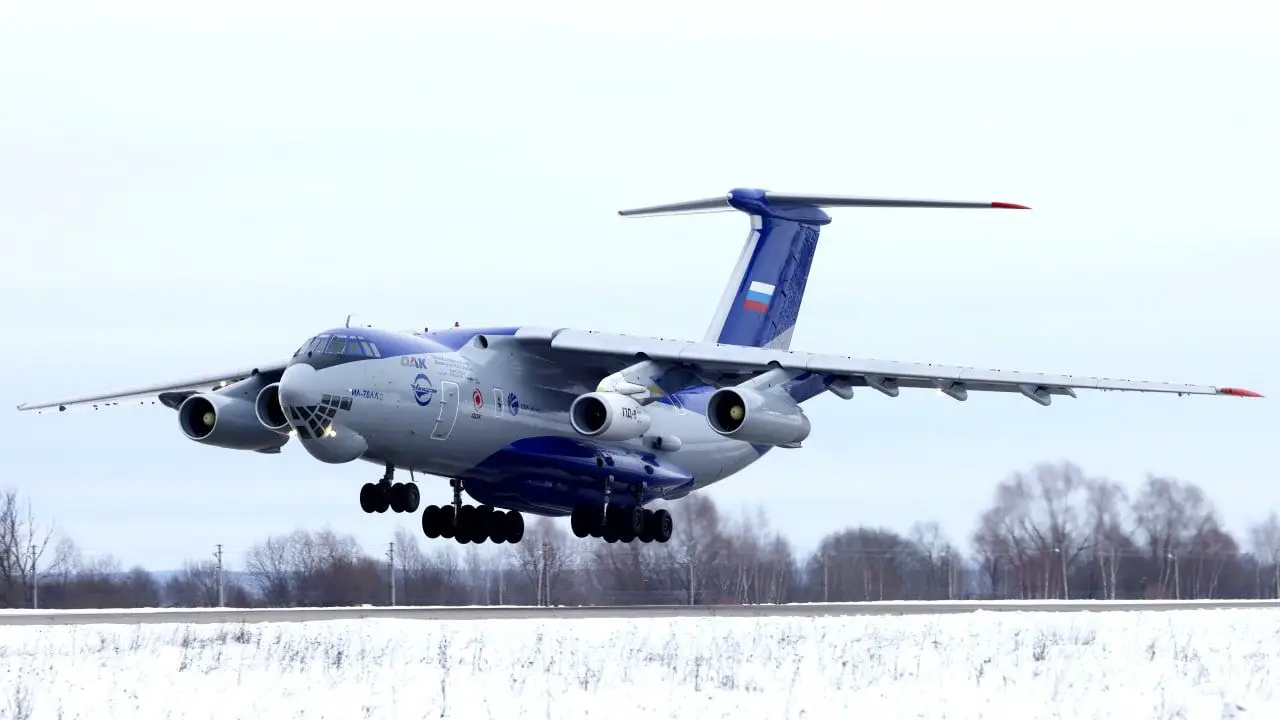

The Ilyushin Il-76LL, also known as the “letayushchaya laboratoriya,” or flying laboratory, is a critical Russian aircraft that was expressly designed to function as a flying testbed for the development of aero engines. Its story is intricately linked to the development of aerospace technology and the broader industrial changes that took place in the USSR and Russia.
Origins of the Il-76LL Engine Testbed
In the late 1970s, the Il-76LL was designed and built. A total of five Il-76 airframes were converted for use as engine testbeds at the beginning of this period. LL is an abbreviation for letayushchaya laboratoriya, which signifies its dedicated laboratory/testbed function. This designation is usually given to Soviet experimental aircraft. The Il-76 cargo aircraft’s sturdy structure, range, and payload were leveraged to facilitate the intricate and demanding process of in-flight engine testing through these conversions.
When Was It Conceived and Built?
In the late 1970s, the Soviet aerospace industry was motivated by the necessity for a modern, competent platform to test jet engines that were becoming increasingly complex and large under realistic conditions. This initiative led to the development of the Il-76LL. The Il-76 airframe, which was operational by 1975 and was first flown in 1971, served as an exceptional foundation due to its payload capacity, size, and dependable multi-engine configuration. By replacing or modifying one of the standard engines with a test engine installation, multiple aircraft were systematically converted into flying laboratories in the years that followed. These aircraft were equipped with telemetry and instrumentation to facilitate comprehensive in-flight performance monitoring. The Soviet Union was able to more effectively accelerate the development of civil and military aero engines as a result of this timeline, which was an important step up from earlier, lesser platforms.
What was the rationale behind the selection of the Il-76?
The Il-76 was chosen as the testbed aircraft due to a variety of critical factors:
It was capable of accommodating the substantial instrumentation necessary for testing and large experimental engines due to its large fuselage and high payload capacity. The aircraft’s capacity to transport substantial cargo rendered it more adaptable and secure than smaller testbed aircraft.
The Il-76’s stable flight characteristics were instrumental in creating a testing environment that was both secure and predictable. This environment was essential for the evaluation of prototype engines that may exhibit unknown behaviors.
Its multi-engine design ensured continuous flight safety in the event of issues with the test engine or the extant powerplants during high-risk experimental operations, as it provided redundancy.
The Il-76 was already in mass production and widely available within the USSR’s aviation infrastructure, which enabled cost-effective conversions without the need to develop a dedicated airframe specifically for engine testing.
What was implemented prior to the Il-76LL testbeds?
The Soviet Union used various airframes, frequently modified from operational bombers and airliners, as aircraft laboratories for aero engine testing before the Il-76LL was introduced. Despite their innovative nature at the time, these earlier platforms were more restricted in terms of payload and technology compared to the Il-76.
1. Tupolev Tu-16 “Badger”
The Tu-16 was a strategic jet-powered bomber that was introduced in the early 1950s and was extensively utilized for a variety of research purposes. It was modified for engine test duties due to its twin-jet configuration and respectable range, which allowed for the transportation of experimental equipment and the establishment of a stable platform. However, the Tu-16’s utility for advanced testing programs was restricted by its relatively smaller size and antiquated technology, particularly in the late 1960s and 1970s, as the size and complexity of jet engines increased.
2. Ilyushin Il-18
In the late 1950s, the Il-18 was a groundbreaking turboprop airliner. It was employed as a flying laboratory for systems and engines, using its pressurized cabin and stable flight capabilities. However, the Il-18’s turbine-prop engines, coupled with its lower speed and payload capacity, rendered it less suitable for the newer generation of high-bypass turbofan engines that originated in the latter Soviet era.
3. Additional Platforms That Have Been Modified
Numerous other varieties of aircraft, such as piston-engine and early jet bombers such as the Tupolev Tu-95, as well as smaller propeller aircraft, were repurposed for testbed functions through the history of Soviet aviation. These platforms were frequently restricted by the capacity, performance, and age of their airframes. The Il-76LL was introduced as a result of the necessity for a more modern and competent testbed, which was a result of the rapid evolution of engine technology during the Cold War.
Context of the Institution
Since the inception of Soviet aviation, the Gromov Flight Research Institute (LII) in Zhukovsky has been at the vanguard of Russia’s engine testing operations. Over the course of several decades, LII’s engineers and pilots modified various aircraft to function as floating laboratories. The Il-76LL testbed’s arrival was a major event for LII, as it provided them with a sophisticated, adaptable instrument to facilitate the development of innovative engine programs and significantly improved their experimental flight testing capabilities.
Engine Programs Supported Impact and Evolution
Since its introduction into service, the Il-76LL has played a crucial role in the development of various Soviet and Russian aero engines. This includes civil engines such as the Lotarev D-18T and the state-of-the-art PD-14 turbofan, as well as heavy-duty military turbofans used in strategic transports and tankers. The Il-76LL helps test how well engines work while flying, checking things like power, efficiency, pollution, vibrations, and control systems in real conditions that can’t be fully replicated on the ground. It has facilitated Russia’s attainment of substantial milestones in technological advancement and aviation independence.
Specifications
Specialized modifications, like engine mounts and reinforced pylons, equip the aircraft to securely hold powerful test engines. Additionally, the aircraft has advanced instruments that can collect detailed performance data and systems that handle the special needs of prototype engines. It is endowed with telemetry capabilities, which enable engineers on the ground to receive real-time diagnostic data, thereby enabling immediate analysis and adjustment. These technical improvements guarantee the safe and precise in-flight evaluation of even the most experimental powerplants.
History
The Il-76LL has significantly replaced older testbed aircraft as a result of its superior technological sophistication, adaptability, and size. It continues to serve as the foundation of Russia’s engine development infrastructure, facilitating the production of domestic civil aviation engines and the ongoing military programs. The Il-76LL’s durability as a test platform is a testament to its successful design and operational philosophy, rendering it indispensable in the face of contemporary aerospace challenges and international technology constraints.
In conclusion,
The Il-76LL was initially designed and constructed as an engine testbed in the late 1970s with the intention of addressing the escalating size and complexity of Soviet civil and military aero engines. Previously, aircraft like the Tupolev Tu-16 and Ilyushin Il-18 fulfilled this function, but the Il-76LL represented a major leap in capability. Presently, it is indispensable; without it, Russia’s ongoing military powerplant developments or advancements in critical initiatives such as the PD-14 engine would be rendered impossible.
